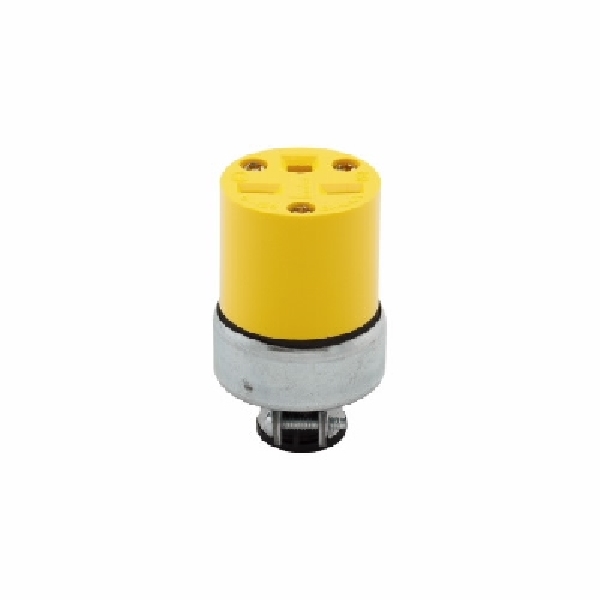

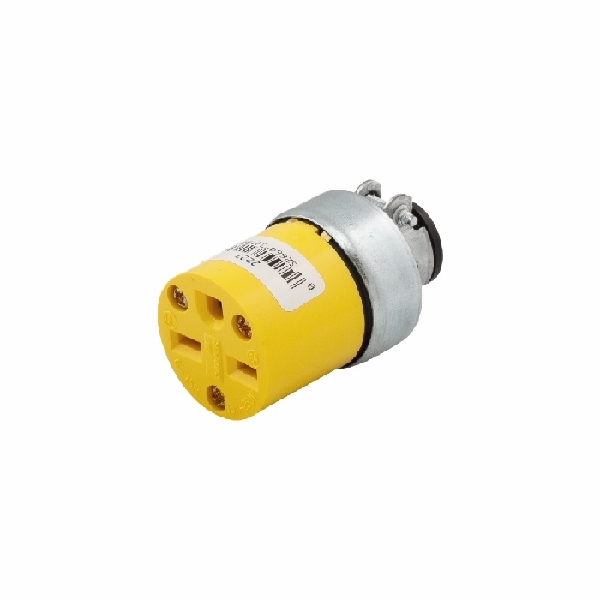

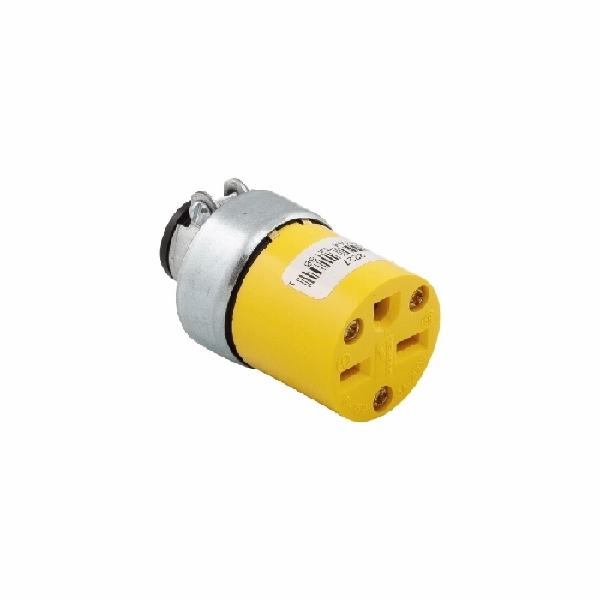

Eaton Wiring Devices 2227-BOX Armored Connector, 2 -Pole, 15 A, 250 VAC, Screw, NEMA: NEMA 6-20R, Yellow

Eaton Wiring Devices

Eaton Wiring Devices 2227-BOX Armored Connector, 2 -Pole, 15 A, 250 VAC, Screw, NEMA: NEMA 6-20R, Yellow

Eaton Wiring Devices 2227-BOX Armored Connector, 2 -Pole, 15 A, 250 VAC, Screw, NEMA: NEMA 6-20R, Yellow
  • Cable/Wire Size: 18 to 12 AWG
  • Color: Yellow
  • Connection Type: Screw
  • Current Rating: 15 A
  • Dimensions: 2-3/4 in L x 1-1/2 in W x 1-1/2 in H
  • Model #: 2227-BOX
  • UPC #: 032664321801
  • SKU: 0708545

Availability

Product Details

Commercial-grade, vinyl armored connectors solid brass plug blades are firmly embedded in body. Terminal screw clamps are designed to contain wire and prevent binding. Terminal screws backed out ready for wiring. Terminals in individual chambers to positively insulate conductors. Armored housing automatically grounded. Combination slot/Phillips head mounting and terminal screws ease installation with power screwdrivers.

Item Specifications

Cable/Wire Size18 to 12 AWG
ColorYellow
Connection TypeScrew
Current Rating15 A
Dimensions2-3/4 in L x 1-1/2 in W x 1-1/2 in H
Grounding TypeGrounded
MaterialVinyl
NEMA ConfigurationNEMA 6-20R
Number of Poles2
Number of Wires3
Voltage Rating250 VAC
