Midwest

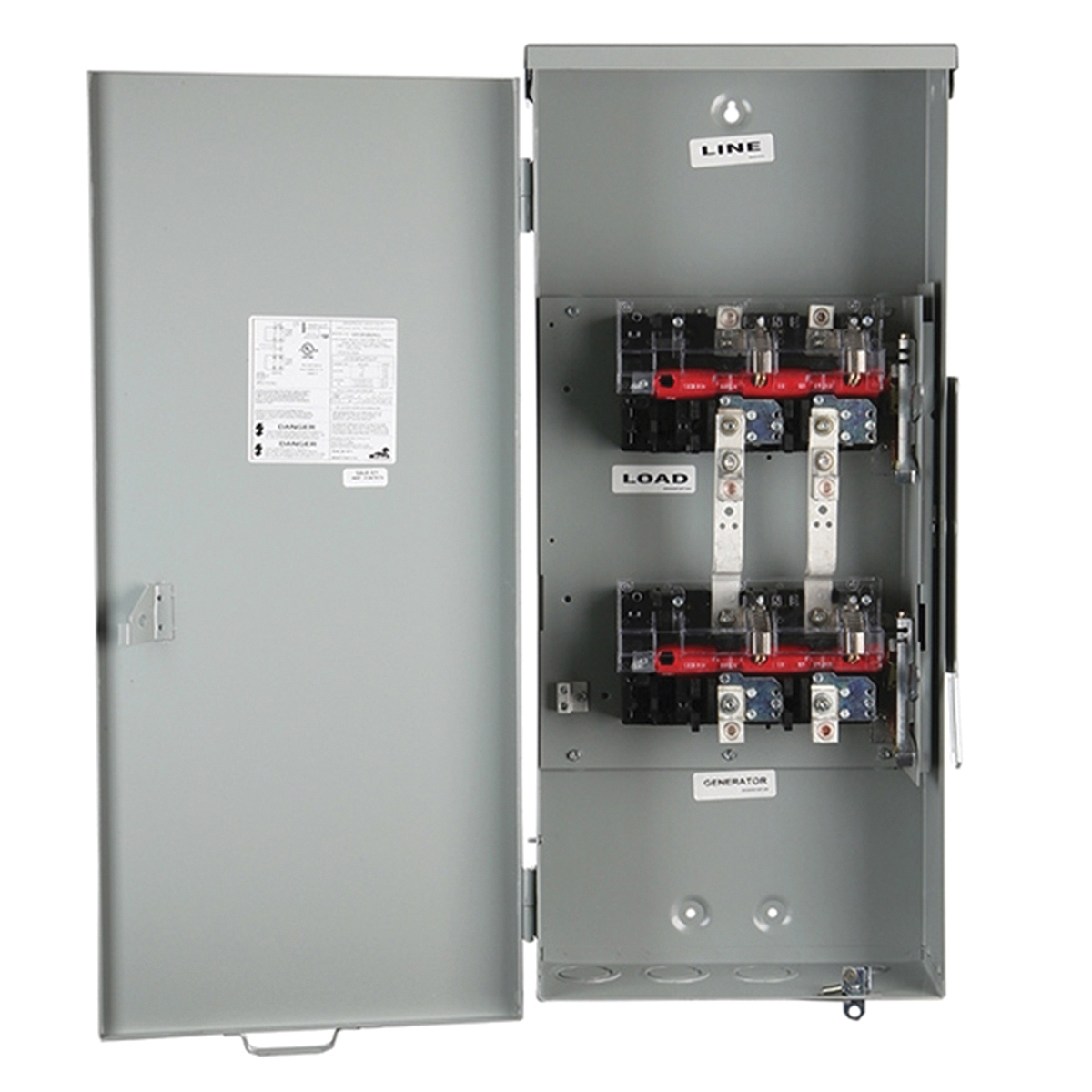

Midwest 28550 Transfer Switch, 1-Phase, 100 A, 120/240 V, NEMA 3R Enclosure
- Current Rating: 100 A
- Dimensions: 26 in H x 13 in W x 10-5/8 in D
- Enclosure Type: NEMA 3R
- Finish: Zinc
- Includes: 1-1/4 in Hub
- Model #: 28550
- UPC #: 784567203370
- SKU: 28550
Product Details
The Midwest line of heavy-duty manual transfer switches provide reliable and trouble-free transfer of power from the normal utility supplied source to a stand by generator enabling the user to maintain power during utility down time periods. The "double throw" mechanism helps prevent dangerous back feeding of generator power into the utility system. The Midwest transfer switch is designed to be fully operational and switchable at full rated capacity.Item Specifications
| Current Rating | 100 A |
|---|---|
| Dimensions | 26 in H x 13 in W x 10-5/8 in D |
| Enclosure Type | NEMA 3R |
| Finish | Zinc |
| Includes | 1-1/4 in Hub |
|---|---|
| Number of Phases | 1 |
| Number of Poles | 2 |
| Voltage Rating | 120/240 V |
MORE DETAILS:
- Midwest_103285943_Specification_Sheet.pdf
- Midwest_103285943_Line_Drawing.pdf
- Application: For use them anywhere an extended outage would result in severe loss, damage or inconvenience
