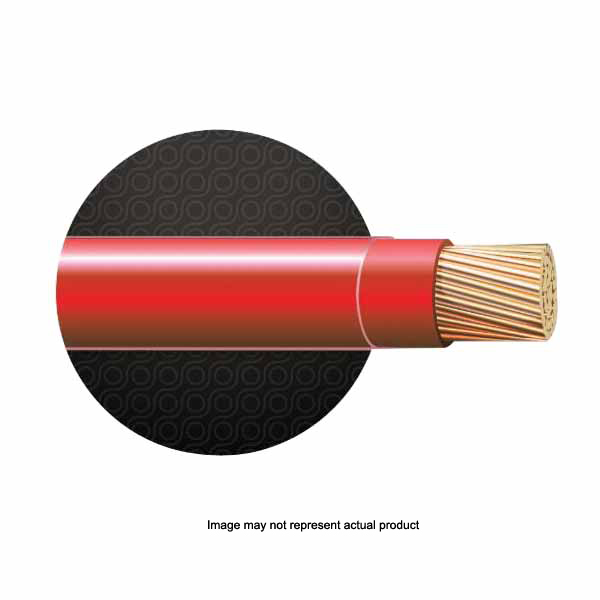

Cerrowire 112-3453J Series Building Wire, Red Sheath, 14 AWG Wire, 500 ft L, Copper Conductor, PVC Insulation

Cerrowire

Cerrowire 112-3453J Series Building Wire, Red Sheath, 14 AWG Wire, 500 ft L, Copper Conductor, PVC Insulation

Cerrowire 112-3453J Series Building Wire, Red Sheath, 14 AWG Wire, 500 ft L, Copper Conductor, PVC Insulation
  • Conductor Insulation: PVC
  • Conductor Material: Copper
  • Current Rating: 15 A
  • Length: 500 ft
  • Operating Temperature: 90 deg C
  • Model #: 112-3453J
  • UPC #: 048243989935
  • SKU: 602383

Availability

Product Details

Thermoplastic insulated copper wire with a nylon covering. Sizes 8 AWG through 1000 kcmil feature Cerrowire SLiPWire™ Technology for fast and easy pulling in conduit. This 90 deg C, 600 V building wire is for use in residential, commercial and industrial applications. Intended for use in accordance with the National Electrical Code® in both wet and dry locations. Sunlight-resistant in black only 8 AWG through 1000 kcmil. Conductors 14 AWG through 1 AWG are marked VW-1 and 1/0 AWG through 1000 kcmil are rated for use in cable tray. When used as appliance wire, 105 deg C dry rated.

Item Specifications

Conductor InsulationPVC
Conductor MaterialCopper
Current Rating15 A
Length500 ft
Operating Temperature90 deg C
Sheath ColorRed
Sheath Diameter0.111 in
Sheath MaterialNylon
Stranded/SolidStranded
Strands per Conductor19
TypeTHHN/THWN-2
Voltage Rating600 V
Wire Size14 AWG
