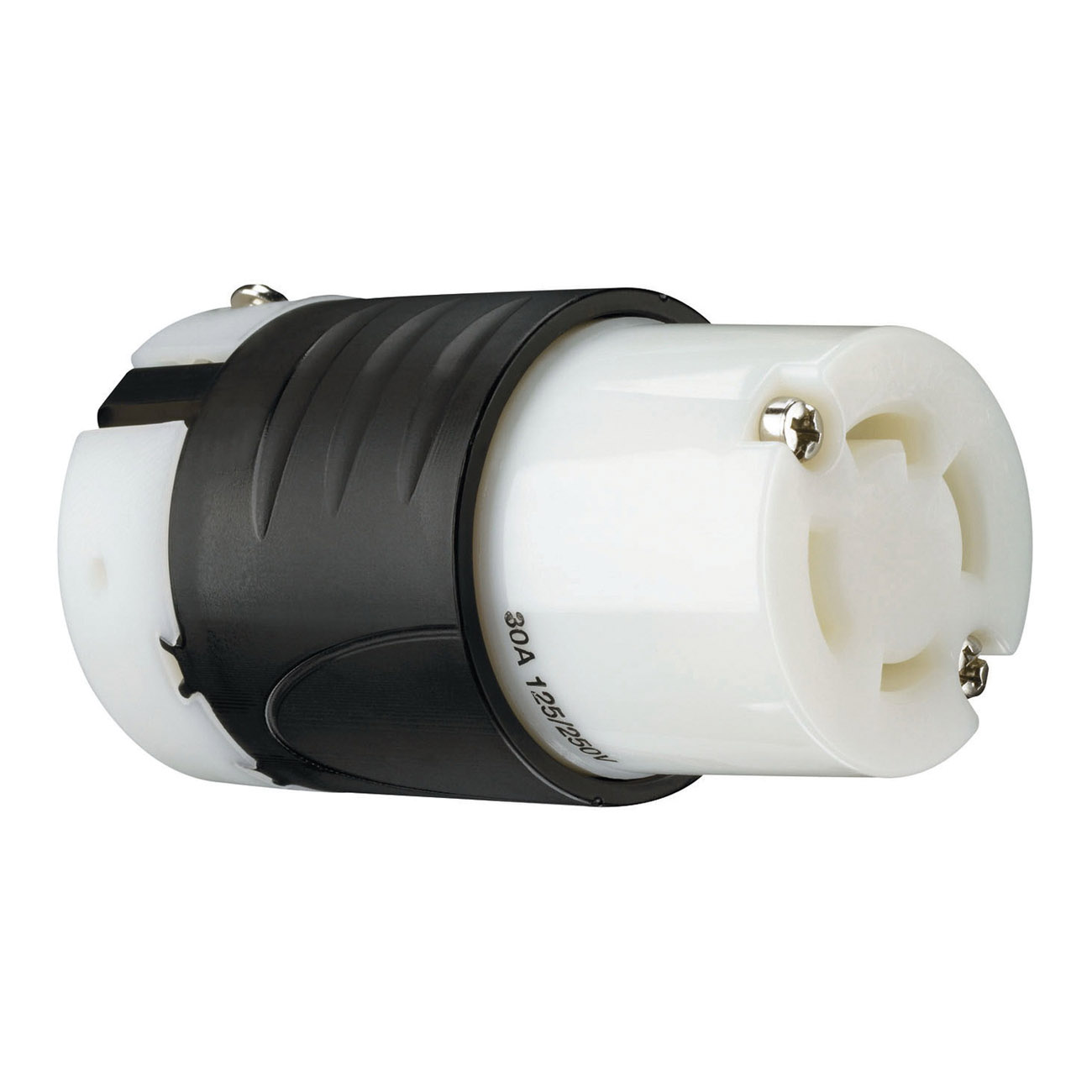

Pass & Seymour Turnlok L1430C Locking Connector, 2 -Pole, 30 A, 125/250 V, Screw, IP20, NEMA: NEMA L14-30R

Pass & Seymour

Pass & Seymour Turnlok L1430C Locking Connector, 2 -Pole, 30 A, 125/250 V, Screw, IP20, NEMA: NEMA L14-30R

Pass & Seymour Turnlok L1430C Locking Connector, 2 -Pole, 30 A, 125/250 V, Screw, IP20, NEMA: NEMA L14-30R
  • Cable/Wire Size: 4 AWG
  • Color: Black/White
  • Connection Type: Screw
  • Current Rating: 30 A
  • Dimensions: 2.2 in Dia x 3.33 in L
  • Model #: L1430C
  • UPC #: 785007143010
  • SKU: 674739

Availability

Product Details

Every component of these durable Turnlok® locking plugs and connectors are built to offer the lowest installed cost with maximum durability. Quick thread assembly screws install four times faster than competitive product and backed out screws come ready-to-wire. The rugged easy-to-grip nylon housing, clear thermoplastic terminal chambers as well as high-strength brass alloy blades and contacts combine to give Legrand the premium selection of P&S Turnlok® plugs and connectors.

Item Specifications

Cable/Wire Size4 AWG
ColorBlack/White
Connection TypeScrew
Current Rating30 A
Dimensions2.2 in Dia x 3.33 in L
Grounding TypeGrounded
IP RatingIP20
MaterialNylon
NEMA ConfigurationNEMA L14-30R
Number of Poles2
Number of Wires3
Operating Temperature-40 to 75 deg C
Voltage Rating125/250 V
