Southwire

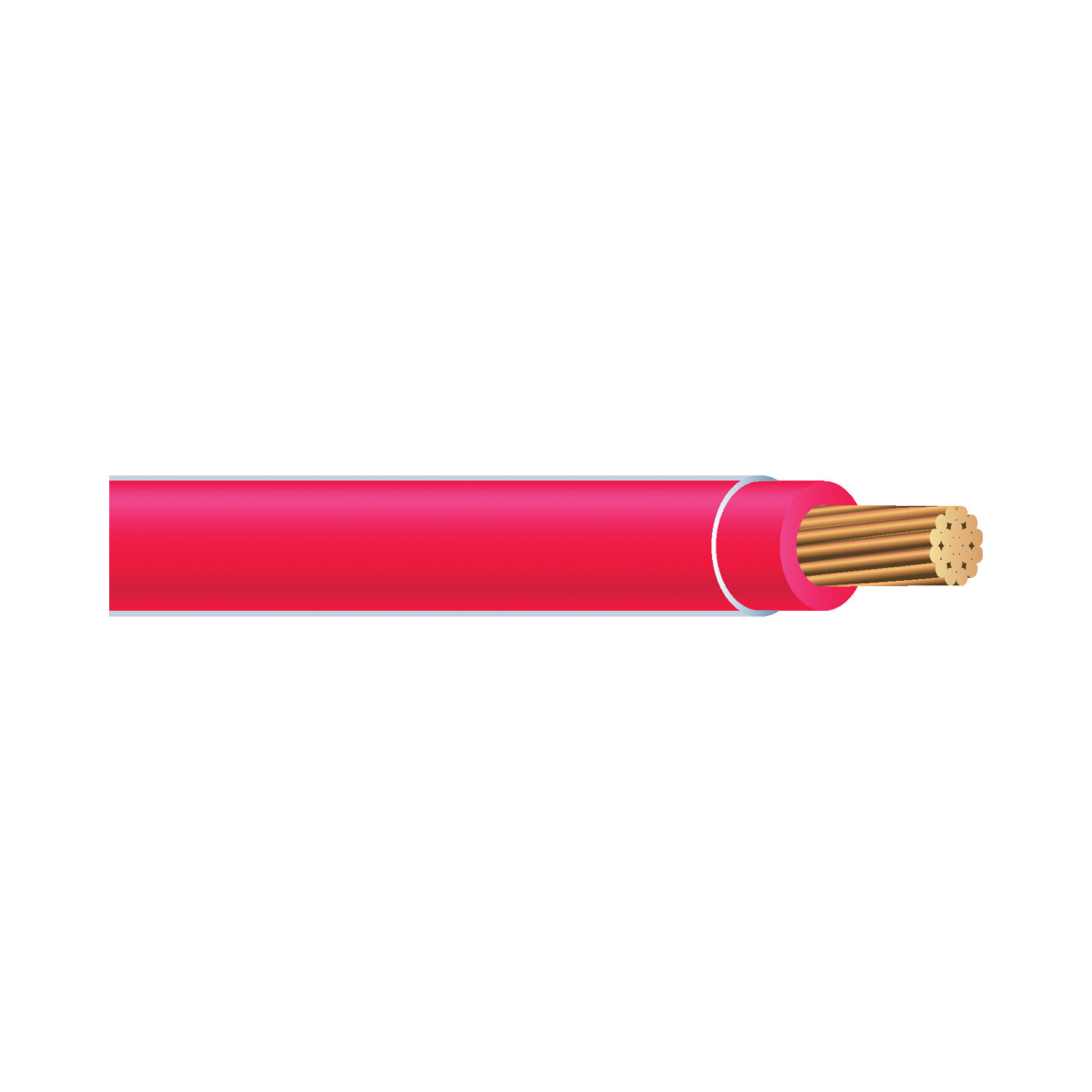

Southwire 22957583 Building Wire, 14 AWG Wire, 1 -Conductor, 50 ft L, Copper Conductor, PVC Insulation, Red Sheath
- Conductor Insulation: PVC
- Conductor Material: Copper
- Current Rating: 15 A
- Length: 50 ft
- Number of Conductors: 1
- Model #: 22957583
- UPC #: 032886007057
- SKU: 567372
Product Details
Southwire Building Wire, THHN, 14 AWG Wire, 50 ft Length, 1 Conductors, Strands per Conductor: 19, Copper Conductor, PVC Conductor Insulation, Stranded, Nylon Sheath, Red Sheath, 0.109 in Sheath Diameter, 600 VAC, 15 A, 194 deg F OperatingItem Specifications
| Conductor Insulation | PVC |
|---|---|
| Conductor Material | Copper |
| Current Rating | 15 A |
| Length | 50 ft |
| Number of Conductors | 1 |
| Operating Temperature | 194 deg F |
| Sheath Color | Red |
| Sheath Diameter | 0.109 in |
|---|---|
| Sheath Material | Nylon |
| Stranded/Solid | Stranded |
| Strands per Conductor | 19 |
| Type | THHN |
| Voltage Rating | 600 VAC |
| Wire Size | 14 AWG |
MORE DETAILS:
- Application: For conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications
